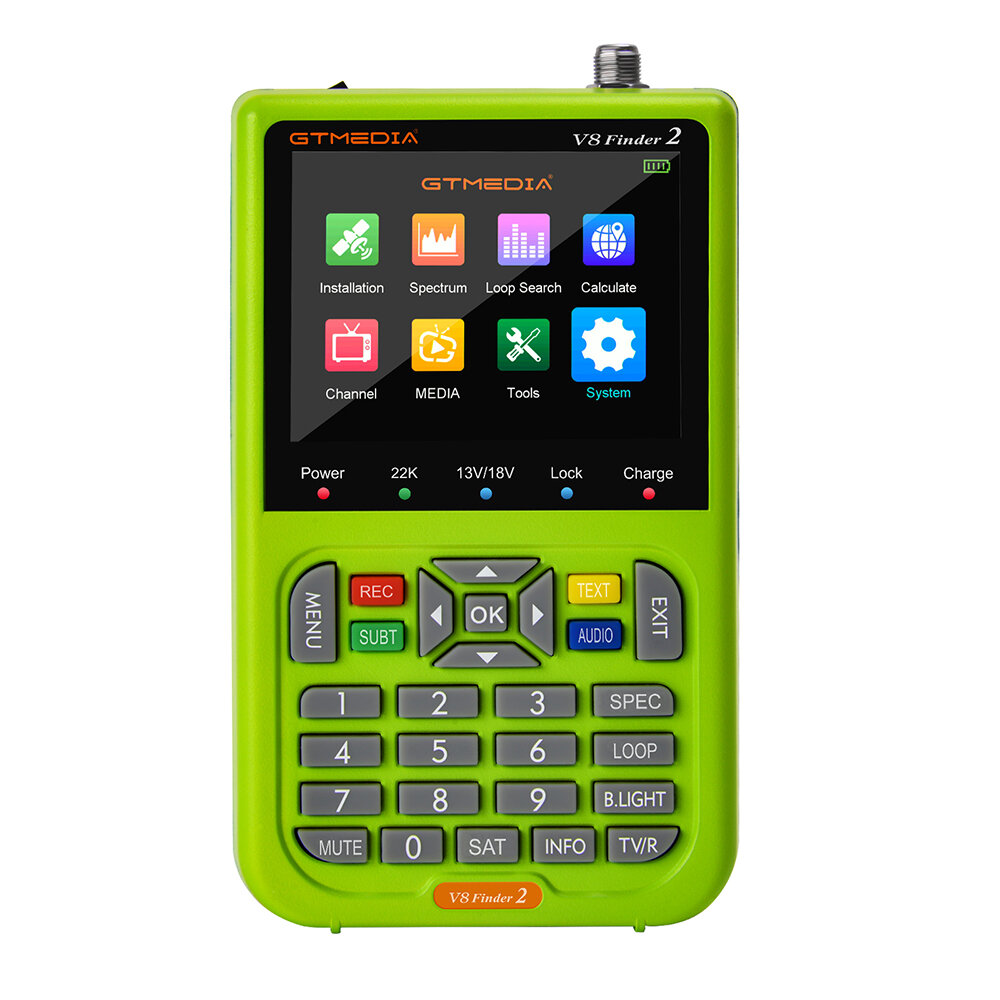

GTmedia v8Finder2 950MHz-2150MHz 3.5 Inch LCD DVB-S2x Full HD Digital Satellite Finder 5000mAh Battery with Spectrum Analyzer

item#: A1923022PB

Retail price: 0

Wholesale Price:

US$ € £ CA$ AU$ HK$ CHF RMB NZ$ DKr ₪ ₽ Ft Mex$ NKr Kč S$ NT$ å†† zÅ‚ ฿ SKr ₱

51.74

Start from: 1 Unit(s)

Qty.Range(unit)	Price(per unit)	Discount
Large Order:

0 + Shipping Cost

Quantity:

Other item in the list

GTMEDIA GTcombo 2 in 1 Amlogic S905X3 Smart TV...
0
GTmedia v8Finder2 950MHz-2150MHz 3.5 Inch LCD...
0
GTMEDIA V8 Finder Pro Satellite Signal Finder...
0
Ezcap 280H HDMI Game Video Capture with Mic Input...
0
Audiocast M5 for DLNA Airplay Adapter Wireless...
0
ezcap261M HD Video Capture Converter 4K 1080P
0

Product Details
Payment and Shipping
Review

GTmedia v8Finder2 950MHz-2150MHz 3.5 Inch LCD DVB-S2x Full HD Digital Satellite Finder 5000mAh Battery with Spectrum Analyzer

Highlights

Measurements of DVB-S/S2/S2X signals
Digital satellite finder meter for quick setup of satellite dishes
3.5 Inch High Definition LCD Screen
Li-Ion battery (3.7 V /5000 mAh) for up to 4-hour operating time.
Support AV in; AV/HDMI out function
Support 13V / 18V / LOCK status panel LED display directly,
Support for DiSEqC1.0/1.1/1.2/USALSand 22 kHz Tone
LNB short circuit protection
Support battery power display
Parameters:
CPU: M3S10 MPEG-4, MPEG-2
DDR: 1G DDR3
Flash: 64M SPI
Demodulation: M1502+Tuner M3031
Hardware:
Video Decode: MPEG-2 MPHL;MPEG4/H.265, BP MP&HPL4.1;AVS profileL6.1/4.0/2.0 HDMI: 480i/p, 576i/p, 720p, 1080i, 1080P
Audio Decode: MPEG1 layer I, MPEG1 layer II, MPEG1 layer III, MPEG2 AAC, MPEG4 HE-AAC, Dolby
Panel display: 3.5 Inch LCD Screen
LED Indicator: status panel LED display
Button: 28 key operation
Rear Panel: LNB IN (Frequency Range950MHz to 2150MHz)
HD OUT:
AV OUT (4-pin 3.5 mm * 14MM jack)
AV IN (4-pin 3.5 mm * 14MM jack)
1*USB port (Software upgrades for USB)
Power: Input 110V ~240V, 50/60Hz DC12V/1.5A
Standard:
System capabilities: DVB-S/S2/S2X
System standard: ETS 302 307 LNB Input
Connector: F type, male
Frequency range: 950MHz-2150MHz
Input Impedance: 75Ω
Input Signal level: -65dBm~-25dBm (average power)
Active Ant Power: 13/18V DC @ 400mA MAX, Overload Protection
DiSEqC: DiSEqC1.0/1.1/1.2/USALS Motor fully support
LNB switch control: 22K
Demodulator:
Front end: QPSK, 8PSK
Symbol rate: 2Mbps~45Mbps
SCPC and MCPC Capable: Yes
Spectral inversion: Auto conversion
DVB-S Spectrum: Forward error correction rate 1/4, 1/3, 2/5, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
Carrier frequency acquisition range: ±5MHz for symbol rates above 3 Msps and ±3MHz for the remaining symbol rates
Roll-off factors for pulse shaping: 0.2, 0.25 and 0.35
Symbol Rates: 1- 55 Msps
Code Rates: 1/2, 2/3, 3/4, 5/6, 7/8
Sortware Features:
OSD Language: OSD Multi-language for options (EnglishGermanFrenchPortugueseSpanishItalianRussianTurkishPolishArabic FarsiEspanolDeutsch)
Channel Search: Channel search in automatic, manual and network search
Easy Menu: Plug and Play installation, with an easy to use Menu System
PAL/NTSC: Automatic PAL/NTSC conversion, and 4: 3 or 16: 9 display form
Soft Upgrade: Software upgrade through USB
Power Supply: AC IN110-240V, DC 12V/1500mAh
Li-oN Battery: Battery 5000mA/7.4V
Operation Temperature: 0~+45°C
Storage Temperature: -10~+60°C
Humidity: 20~90%, non-condensed
Product Dimension: 95 x 155 x 45 MM (L x W x H)
Package Size: 240 x 180 x 58MM
Unit Weight: 0.85Kg

Package Details

1x Digital satellite Finder
1x Adapter (EU/UE/UK/AU Plug)
1x AV cable
1x Car charger cable
1x Carrying bag
1x strap of carrying bag
1x User Manual
